PT-511 Home > Product > Canning Industry > PT-511
PT-5 Case Palletizer

PT-511     【Inquiry】
/images/pdt2/tw/PT-511_79290884-50ee-4081-bc36-5ce96a03fc8c.jpg
  • The stacking way and layer amounts to be stacked can be set
  • Speed section is selective
  • The layer amounts to be stacked can be adjusted depending upon the shape and height of case
  • Action and function of machine are controlled by PLC system
  • HMI design eases the operation and troubleshooting
PT-511     【Inquiry】

Item
Specification
Capacity Max. 2 Layers／min
Pallet Place 1 1220（L）×1020（W）×127（H）(mm)
Pallet Place 2 1420（L）×1220（W）×127（H）(mm)
Stacking Height Max. 1800mm
Power Consumption 7.5Kw(50／60Hz)
Pneumatic Consumption 20Nm3／h (At 5~6 Bar)
Machine Weight Approx. 5200kg

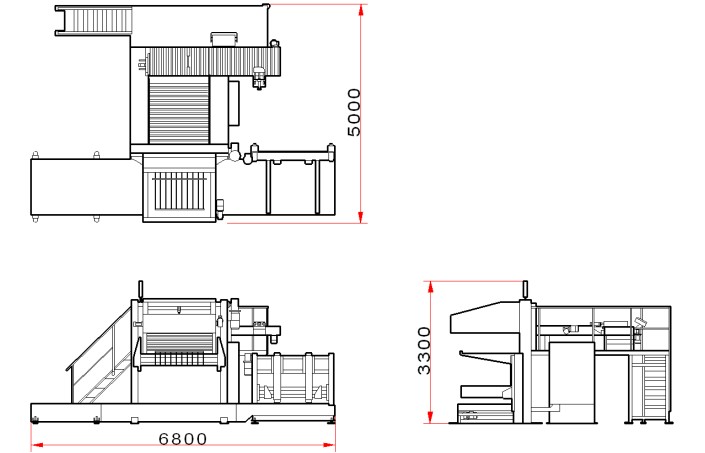

Overall Dimension 6800LX5000WX3300Hmm
  ◆The specifications mentioned above can be altered depending on various designs
