PT-61 Depalletizer Home > Product > Canning Industry > PT-61 Depalletizer
PT-6 Palletizer & Depalletizer

PT-61 Depalletizer     【Inquiry】
/images/pdt2/tw/2009113014293070555_4e3667bd-fe47-485d-9428-362fcaefb804.jpg
  • Depalletizer ( Standard Model)
  • Sliding depalletizing mechanism
  • This series contains Empty-Can Conveyor, Bank-and-Forth Depalletizer, Pallet Lift, Pallet Stacker, Pallet Conveyor.
  • The number of layer of empty-can to be piled can be set
  • The running speed can be adjusted
PT-61 Depalletizer     【Inquiry】

Item
Specification
Can Diameter 202D~603D
Can Height 35~240mm
Capacity Max. 3 Layers／min
Pallet Size 1 1220L×1020W×135H (mm)
Pallet Size 2 1420L×1120W×135H (mm)
Layer Pad Size 1 1220L×1020W×2T (mm)
Layer Pad Size 2 1420L×1120W×2T (mm)
Stacking Height Max. 2100 (mm)
Stacking Place 4500L×1500W (mm)
Power Consumption 6 kw (50／60 Hz)
Pneumatic Consumption 20 Nm3／h (At 5~6 Bar)
Machine Weight Approx. 2700 kg

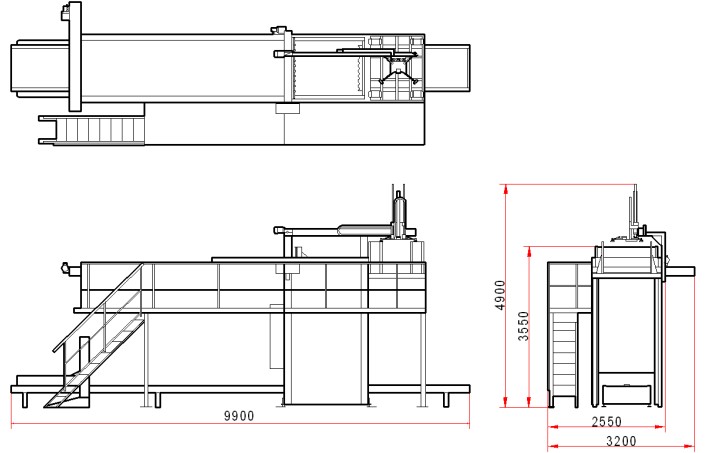

Overall Dimension 9900L×3200W×4900H (mm)
  ◆The specifications mentioned above can be altered depending on various designs
