PT-63 High-speed Palletizer Home > Product > Canning Industry > PT-63 High-speed Palletizer
PT-6 Palletizer & Depalletizer

PT-63 High-speed Palletizer     【Inquiry】
/images/pdt2/tw/200911261434470555_282e0f5b-d8e3-46f7-9e5a-e4e524d8ac2e.jpg
  • High-Speed Empty-Can Palletizer
  • Rotating palletizing mechanism
  • This series contains Empty-Can Conveyor, Circular Palletizer, Pallet Lift, Pallet Feeder, Pallet Conveyor
  • The number of layer of empty-can to be piled can be set
  • The running speed can be adjusted
  • Feeding unit of paper board can be optional
PT-63 High-speed Palletizer     【Inquiry】

Item
Specification
Can Diameter 202D~603D
Can Height 35~240mm
Capacity Max. 3 Layers／min
Pallet Size 1 1220L×1020W×135H (mm)
Pallet Size 2 1420L×1120W×135H (mm)
Layer Pad Size 1 1220L×1020W×2T (mm)
Layer Pad Size 2 1420L×1120W×2T (mm)
Stacking Height Max. 2100 (mm)
Stacking Place 6000L×1500W (mm) / 9000Lx1500W(mm)
Power Consumption 6 kw (50／60 Hz)
Pneumatic Consumption 20 Nm3／h (At 5~6 Bar)
Machine Weight Approx. 2700 kg

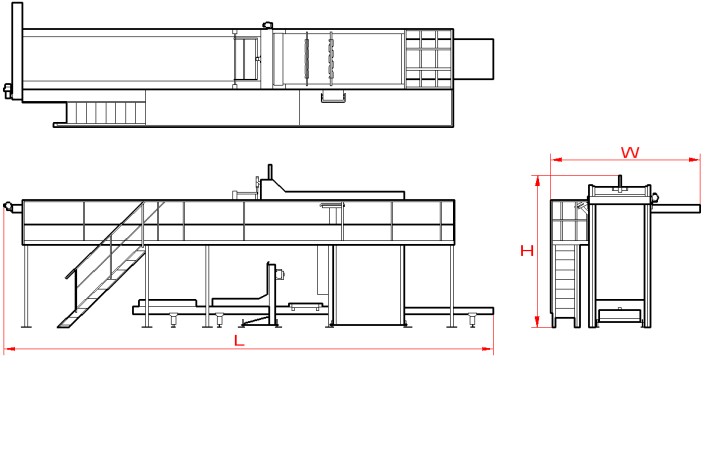

Overall Dimension 12000L×3650W×3800H (mm)
  ◆The specifications mentioned above can be altered depending on various designs
