PT-800 Home > Product > Canning Industry > PT-800
PT-8 Caser

PT-800     【Inquiry】
/images/pdt2/tw/2009113016224270555_25a39305-7523-47d1-b352-4135c6cbc959.jpg
  • Applicable for various containers, such as metal container, glass jar, pet bottle
  • To replace the manual packing with advantages of higher speed and lower labor cost
  • To flexibly adjust the operation depending on various heights, layers and positions
  • Can combine with Auto-Opening Machine to reach fully-automatic process
PT-800     【Inquiry】

Item
Specification
Capacity Max. 5 Layers／min
Cases Quantity 2～6 Cases／one time
Case Specification Max. 560L×280W×280H mm
Stacking Height Max. 300 mm
Power Consumption 14 kw(50／60 Hz)
Pneumatic Consumption 20 Nm3／h(At 5~6 Bar)
Machine Weight Approx. 2800 kg

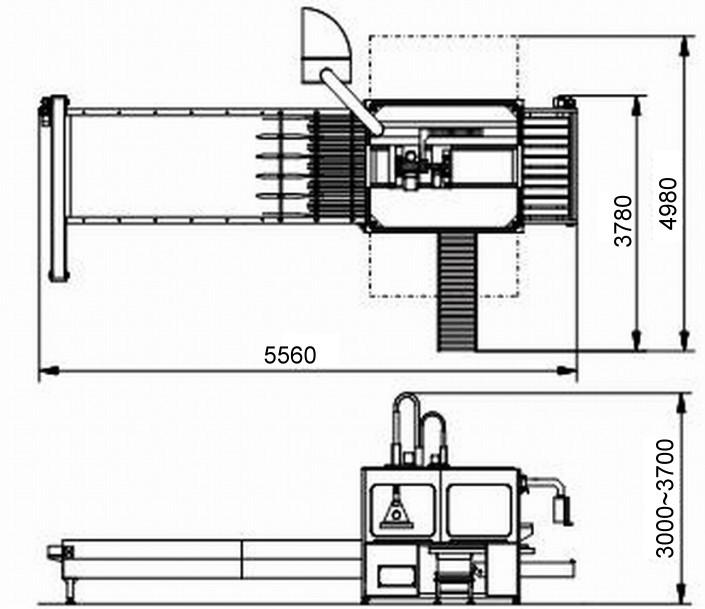

Overall Dimension 5560L×3780W×3000H mm
  ◆The specifications mentioned above can be altered depending on various designs
