ME-11 Home > Product > Canning Industry > ME-11
ME Magnetic Elevator

ME-11     【Inquiry】
/images/pdt2/tw/2010119121870555_f9cb92f2-c3e5-4862-9ac0-d2a124004cf2.jpg
  • Magnetic Elevator can convey various patterns of cans
  • Fit various types of conveying systems
  • To convey efficiently through magnetic mechanism
  • Design of vertical conveying saves space effectively
  • Permanent magnet
  • To meet the requirement of automation in can production
ME-11     【Inquiry】

Item
Specification

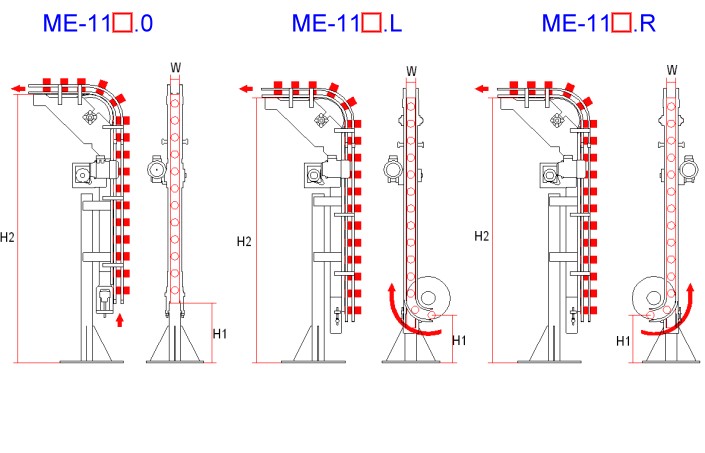

Model No. Diameter (D)　　　　　　Width (W)
ME-111 202D~307D　　　　　　50~100mm
ME-112 401D~502D　　　　　　100~130mm
ME-113 603D　　　　　　　　　130~160mm
===============================
Inlet Height (H1)： 240~900mm
Outlet Height (H2)： 2050~3200mm
  Productivity can be adjusted depending on physical condition
