ME-13 Home > Product > Canning Industry > ME-13
ME Magnetic Elevator

ME-13     【Inquiry】
/images/pdt2/tw/2009122513495070555_cae6b182-3297-41a1-a7a8-ec071a8ed2f6.jpg
  • Magnetic Elevator can convey various patterns of cans
  • Fit various types of conveying systems
  • To convey efficiently through magnetic mechanism
  • Design of vertical conveying saves space effectively
  • Permanent magnet
  • To meet the requirement of automation in can production
ME-13     【Inquiry】

Item
Specification

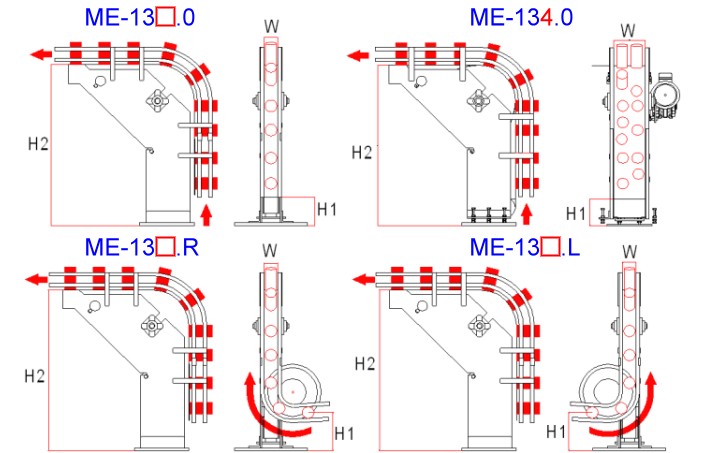

Model No. Diameter (D)　　　　　　　　Width (W)
ME-131 202D~307D　　　　　　　　50~100mm
ME-132 401D~502D　　　　　　　　100~130mm
ME-133 603D　　　　　　　　　　　130~160mm
ME-134 Multiple Conveying Ways　　180mm~
===============================
Inlet Height (H1)： 200~350mm
Outlet Height (H2)： 900~1100mm
  Productivity can be adjusted depending on physical condition
ME-13     【Inquiry】
