ME-31 Home > Product > Canning Industry > ME-31
ME Magnetic Elevator

ME-31     【Inquiry】
/images/pdt2/tw/20101416435777475_5e514992-6968-4d84-be55-071b9924b339.jpg
  • Magnetic Elevator can convey various patterns of cans
  • Fit various types of conveying systems
  • To convey efficiently through magnetic mechanism
  • Design of vertical conveying saves space effectively
  • Permanent magnet
  • To meet the requirement of automation in can production
ME-31     【Inquiry】

Item
Specification

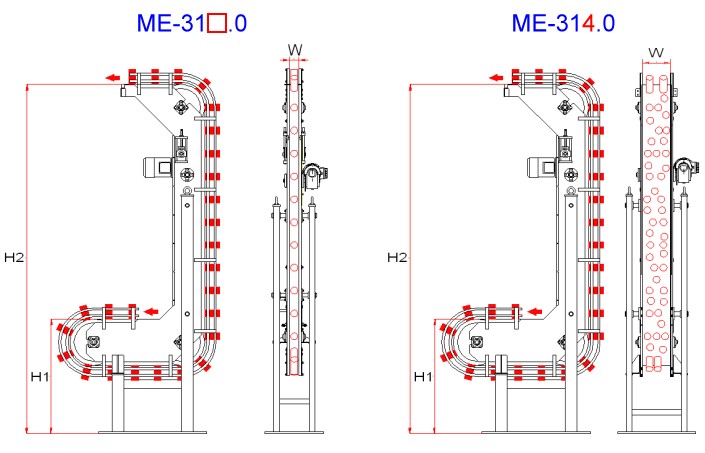

Model No. Diameter (D)　　　　　　　Width (W)
ME-311 202D~307D　　　　　　　50~100mm
ME-312 401D~502D　　　　　　　100~130mm
ME-313 603D　　　　　　　　　　130~160mm
ME-314 Multiple Conveying Ways　 240mm~
===============================
Inlet Height (H1)： 900~1300mm
Outlet Height (H2)： 2050~3200mm
  Productivity can be adjusted depending on physical condition
