MT-22 Home > Product > Canning Industry > MT-22
MT Magnetic Turnner & Can Upender

MT-22     【Inquiry】
/images/pdt2/tw/2009123110433970555_8a7ad1ac-b7cf-4341-99ef-1eb6595c9cf4.jpg
  • Fit various types of conveying system
  • The height can be adjusted
  • To convey efficiently through magnetic mechanism
  • The can orientation can be adjusted to meet production process
  • Permanent magnet
  • To meet the requirement of automation in can production
MT-22     【Inquiry】

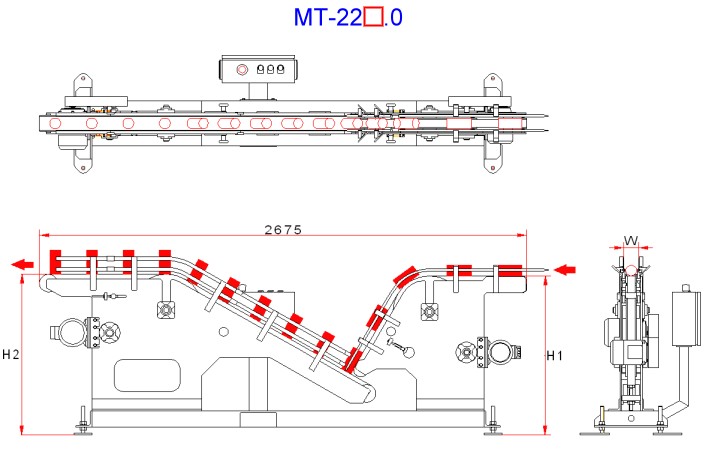

Item
Specification
Model No. Diameter(D)　　　　　Width(W)
MT-221 202D~307D　　　　　50~100mm
MT-222 401D~502D　　　　　100~130mm
MT-223 603D　　　　　　　　130~160mm
===============================
Inlet Height(H1)： 900~1100mm
Outlet Height(H2)： 900~1100mm
  Productivity can be adjusted depending on physical condition
MT-22     【Inquiry】
