MT-24 Home > Product > Canning Industry > MT-24
MT Magnetic Turnner & Can Upender

MT-24     【Inquiry】
/images/pdt2/tw/2010149565570555_cbc6d579-8192-4f99-ab95-54088697c038.jpg
  • Fit various types of conveying system
  • The height can be adjusted
  • To convey efficiently through magnetic mechanism
  • The can orientation can be adjusted to meet production process
  • Permanent magnet
  • To meet the requirement of automation in can production
MT-24     【Inquiry】

Item
Specification

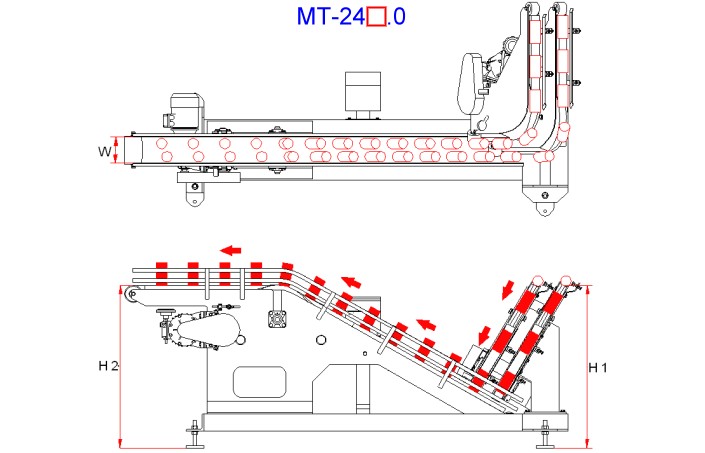

Model No. Diameter(D)　　　　　Width(W)
MT-241 202D~307D　　　　　100~200mm
MT-242 401D~502D　　　　　200~260mm
MT-243 603D　　　　　　　　260~320mm
===============================
Inlet Height(H1)： 900~1100mm
Outlet Height(H2)： 900~1100mm
  Productivity can be adjusted depending on physical condition
