CV-91 Home > Product > Canning Industry > CV-91
CV-9-Air-Conveyors

CV-91     【Inquiry】
/images/pdt2/tw/200992910173470555_6e50bb7e-84f4-45e2-bc06-e2434309a1f7.jpg
  • To integrate the multiple ways into single way of conveyance by pneumatic system
  • To fit various types of conveyance
  • Adjustable depending on can diameter and height
  • Tailored made to meet various requirements of customers
  • To fit various types of can manufacturing machines (e.g. neck-contracting machine)
CV-91     【Inquiry】

Item
Specification
Can Diameter 209D~206D／209~211D
Can Height 408H mm
Capacity Max. 650CPM／Max. 800CPM
Outlet Height 900 mm (can adjustable)
Power consumption 6 kw(50／60 Hz)
Pneumatic consumption 20 Nm3／h(At 5~6 Bar)

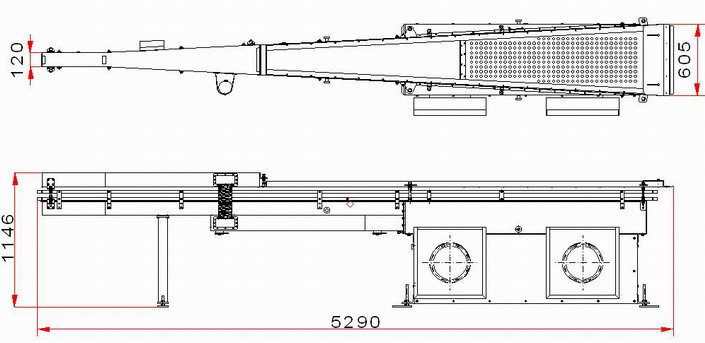

Overall dimensions 5290L×605W×1146Hmm
  ◆The specifications mentioned above can be altered depending on various designs
