SF-711 Home > Product > Canning Industry > SF-711
SF-7-Blank-Feed-Robot

SF-711     【Inquiry】
/images/pdt2/tw/2009112711593570555_b25d9f1d-d0be-45d2-994d-6a7147d73b9a.jpg
  • Fit the conveyance between shear and welding unit
  • Applicable can diameters: 202D~401D
  • Adjustable depending on the size of metal plate
  • Use servo system
  • Can be combined with various shear and welding machines
  • To control and set through HMI panel
  • Tailed made to meet special requirements of customers
  • Meet the requirements of automation in can manufacturing
SF-711     【Inquiry】

Item
Specification
Can Diameter 202～401D
Can Height 95～260 mm
Thickness of metal plate 0.15～0.3 mm
Capacity Max. 600~1000 CPM
Applicable frequency 50／60 Hz
Power consumption 2 kw (220／380 V)
Compressed air 3 Nm3／h(At 5~6 Bar)
Machine Weight Approx. 1200kg

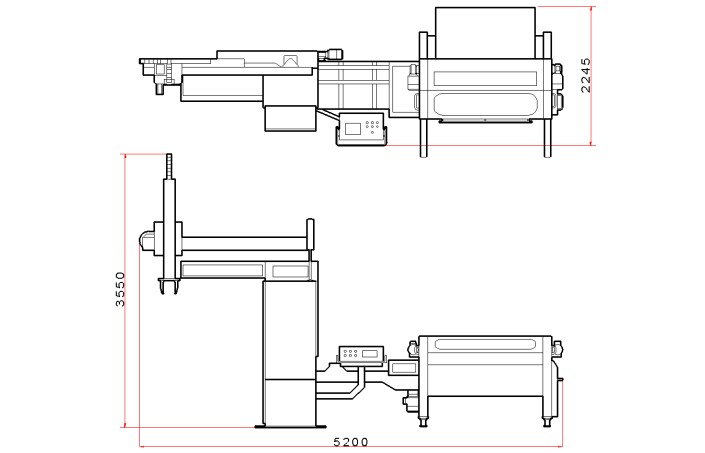

Overall dimensions 5200(L)×2245(W)×3550(H)mm
  ◆The specifications mentioned above can be altered depending on various designs
