SF-712
SF-7-Blank-Feed-Robot

SF-712     【Inquiry
/images/pdt2/tw/2009112711583070555_329f3ad0-de89-48ec-a04c-65c7f44c6839.jpg
  • Fit the conveyance between shear and welding unit
  • Applicable can diameters: 401D~603D
  • Adjustable depending on the size of metal plate
  • Use servo system
  • Can be combined with various shear and welding machines
  • To control and set through HMI panel
  • Tailed made to meet special requirements of customers
  • Meet the requirements of automation in can manufacturing
SF-712     【Inquiry

Item
Specification
Can diameter 401~603D
Can height 95~260 mm
Thickness of metal plate 0.15~0.3 mm
Capacity Max. 300 CPM
Applicable frequency 50/60 Hz
Power consumption 2 kw (220/380 V)
Compressed air 3 Nm3/h(At 5~6 Bar)
Machine weight Approx. 1300kg

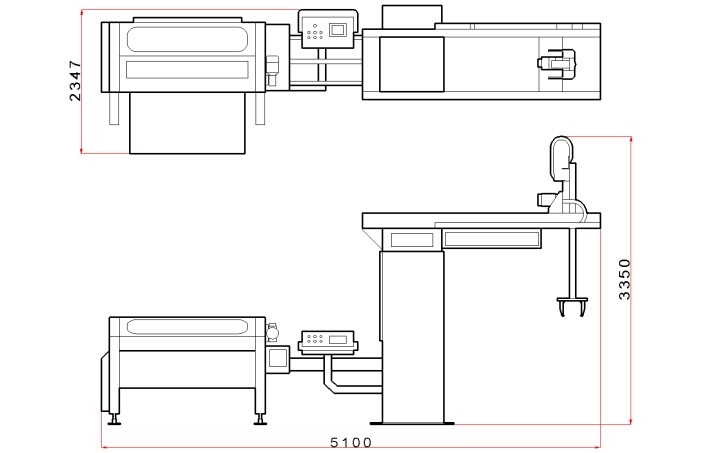

Overall dimensions 5100(L)×2347(W)×3550(H)mm
  ◆The specifications mentioned above can be altered depending on various designs
